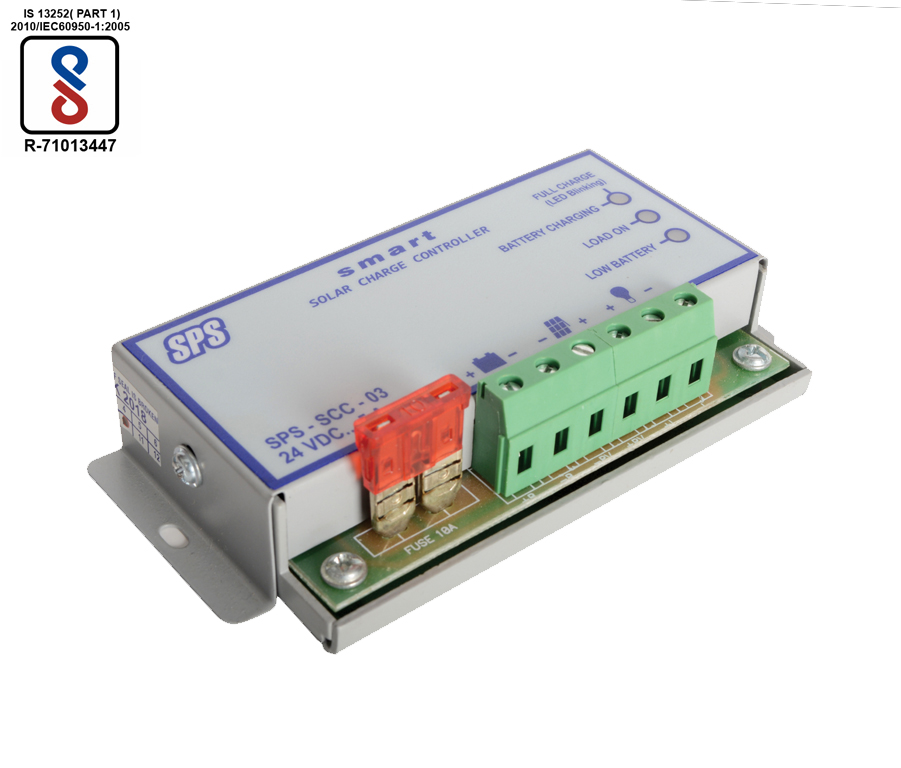

SPS-SCC-03

MODEL: SPS-SCC-03

  • Features
  • Specifications
  • Applications
  • Diagram
  • Controller Based Enhanced PWM Charging
  • Optional Dusk-Dwan Based Load Connect/Disconnect
  • External Jumper Selection for Dusk-Dawn & Direct Mode
  • Battery High - Low Cut
  • Early Low Battery LED Indication
  • Three Stage Charging Algorithm
  • Available in 12VDC / 24VDC -120W Design
  • Easy Connection
Sr No. Parameter Value
1 System Specification 12V ~ 10 Amp.
2 Recommended SPV 12V
3 Recommended Battery Bank 12VDC X 1
4 Battery Bank Total Voltage 12VDC
5 Load Current < 10 Amp.
6 Low Battery Indication 11.5 VDC
7 Battery Recharging Cutoff 14.5 VDC
8 Trickle Charging 13.2 V – 13.8 VDC
9 Load Reconnect 12.5 VDC
10 Load Disconnect (Low Battery) 11 VDC

LED INDICATION : - DIRECT MODE FUNCTION

Sr No. Parameter Led Status Color Meaning
1 Battery Charging
Load ON		 ON
ON		 Orange
Green		 Battery OK Status
2 Battery Charging
Load ON		 Slow Blink
ON		 Orange
Green		 Battery in recharging mode
3 Battery Charging
Load ON		 Fast Blink
ON		 Orange
Green		 Battery Full Charge
4 Battery Charging
Load ON
Low Battery		 ON
ON
ON		 Orange
Green
Red		 Early Low Battery Indication
(Below 11.5 VDC)
5 Battery Charging
Low Battery		 ON
ON		 Orange
Red		 Low Battery Cut-Off
(Below 11 VDC)

LED INDICATION : - DUSK-DAWN MODE FUNCTION

Sr No. Parameter Led Status Color Meaning
1 Battery Charging ON Orange Battery Recharging
2 Battery Charging Blinking Orange Battery Full Charge
3 Load ON ON Green Load ‘ON’
4 Load ON
Low Battery		 ON
ON		 Green
Red		 Early Low Battery Indication
(Below 11.5 VDC)
5 Low Battery ON Red Low Battery Cut-Off
(Below 11 VDC)
  • Telecom Industry
  • Set-Top Box
  • RO Filters
  • CCTV
  • Fire Safety

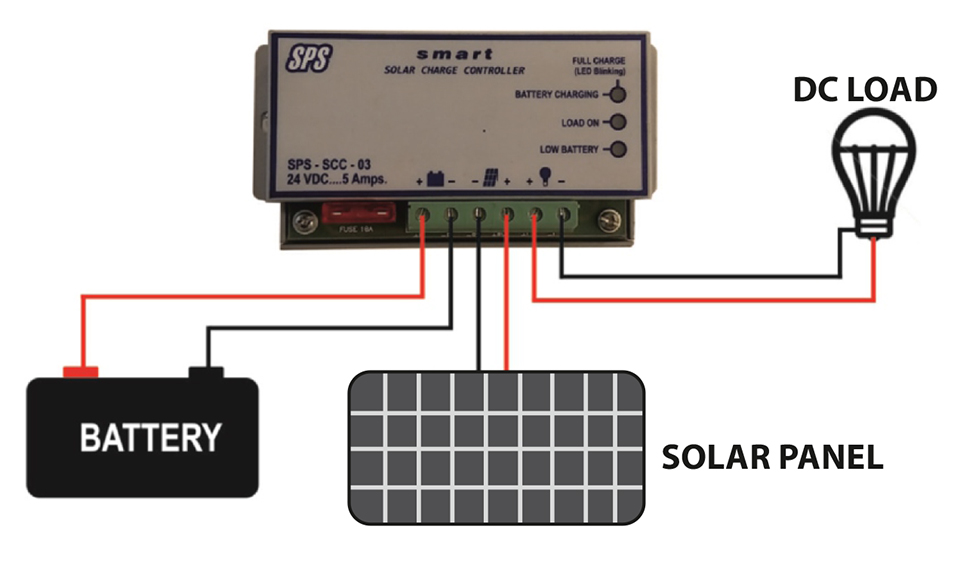

INSTALLATION

  • Connect battery to battery terminal.
  • Followed by connecting load.
  • Finally connect the solar panel (SPV).
