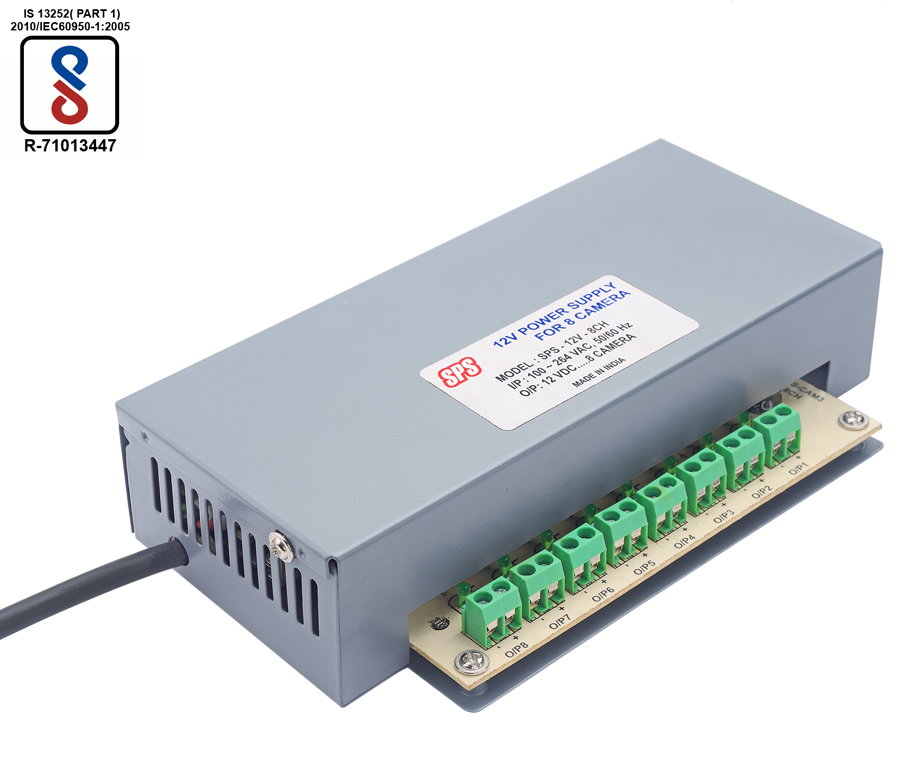

SPS CCTV-8CH

MODEL: SPS CCTV-8CH

MULTI CHANNEL CC TV SMPS
Model O/P Voltage / Channel Dimension
SPS-12V-8CH 12Vdc / 8 CH 172 X 95 X 40 mm
  • Features
  • Specifications
  • Applications

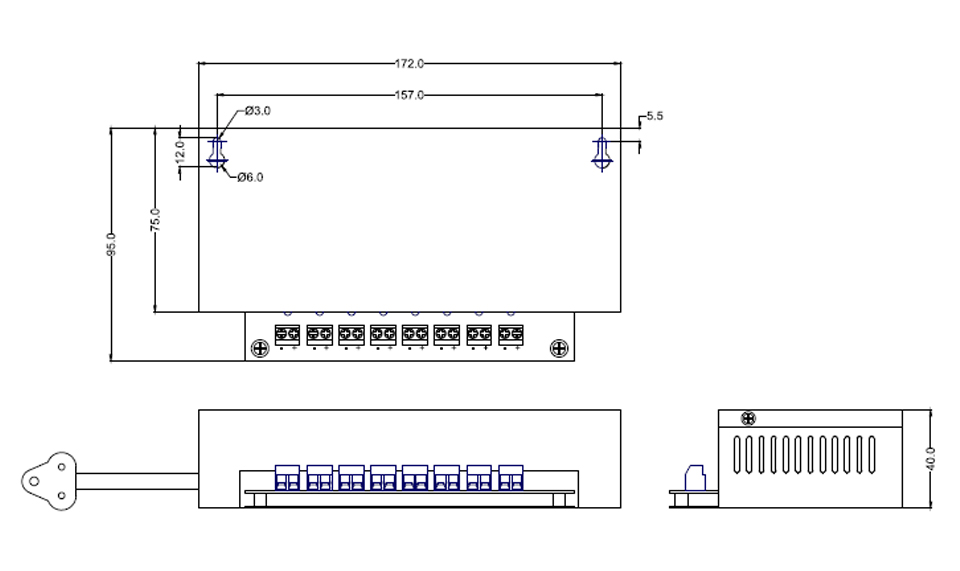

  • Diagram
  • 12Vdc SMPS for Multi Channel O/P
  • Wide Range AC Input 100~264VAC
  • Noise Free Output for Camera
  • 12VDC Individual O/P for Single Camera
  • O/P Thru Screw Type Connectors
  • PTC Fuse, Jumper Switch for each Channel
  • Short Circuit & Thermal Protection
  • Low Working Temperature
  • Reliable & Cost Efficient Product
  • Sturdy & Wall Mount MS Housing
  • LED Indication for each Channel
  • BIS Certified Design
  • 1 Year Product Warrant
AC Input : 100 ~ 264Vac, 50/60Hz.
Inrush Current : 30A. Maximum.
Input Surge : 2KV
Input Fusing : 3A, 250Vac.
DC Output : 12VDC-1A each Camera
Ripple / Noise : < 1% Pk-Pk (BW 20Mz.)
Over Voltage : @125% (+/- 5%) of OPV
Withstand Voltage : I/P – O/P : 2KV
Working Temp. : -10 ~ 60 Deg. C.
Efficiency : 85% Typ.@ Rated Load.
Dimension (LxWxH) : 172X 95 X 40mm
Safety Standards : BIS Certified

Note : All Specs Subject to change without notice.

  • CCTV Camera
