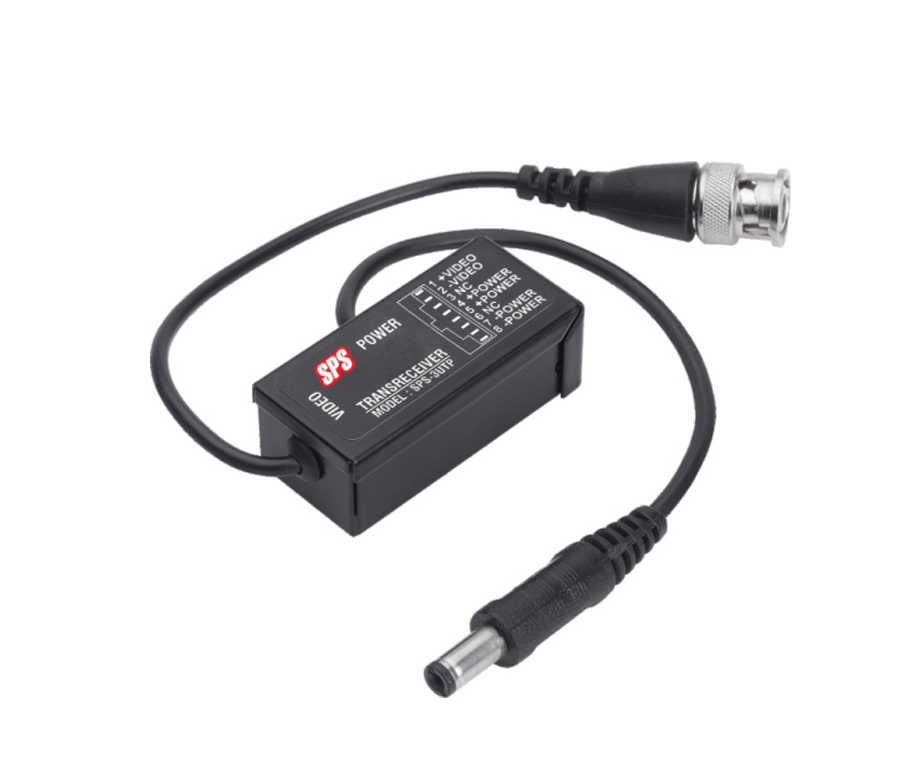

SPS - 3 UTP
MODEL: SPS - 3 UTP
- Video Up to 2200ft (670m) Via Cat.4e Cable
- Supports NTSC, PAL & SECAM Systems
- Transmits Video & Camera Power on same cable
- Surge Protected
- Reliable & Cost Saving Solution
- Converts Bi-directional Signal
- Compact MS enclouser
| Application: | CCTV Equipment for security & surveillance |
| Bandwidth: | Video : DC to 8MHz. |
| Video Signal: | 1.1 Vp-p |
| Impedance: | Input : 75 ohms(BNC Male Connector side) Output : 100 ohms(UTP RJ45 Connector side) |
| Insertion Loss: | <1 dB, Frequency Range from DC to 8MHz |
| Return Loss: | -20dB, Frequency Range from DC to 8 MHz |
| Common Mode Rejection: | -50dB, Frequency Range from DC to 8 MHz |
| Max Distance Color Video: | Cat.5e—2200ft(670m) |
| Max Distance Power: | |
| Cable – UTP: | 24 gauge or lower solid copper twisted pair wire |
| Temperature: | Operating : 0 to 55 Deg. C; Storage -20 to 85 Deg. C |
| Enclosure: | MS Powder Coated |
| Dimensions: | 49 X 23 X 18 mm |
Note : All Specs Subject to change without notice.
- Security & Survelliance - Department Stores / Hospitals / Airports / Schools / Collages
