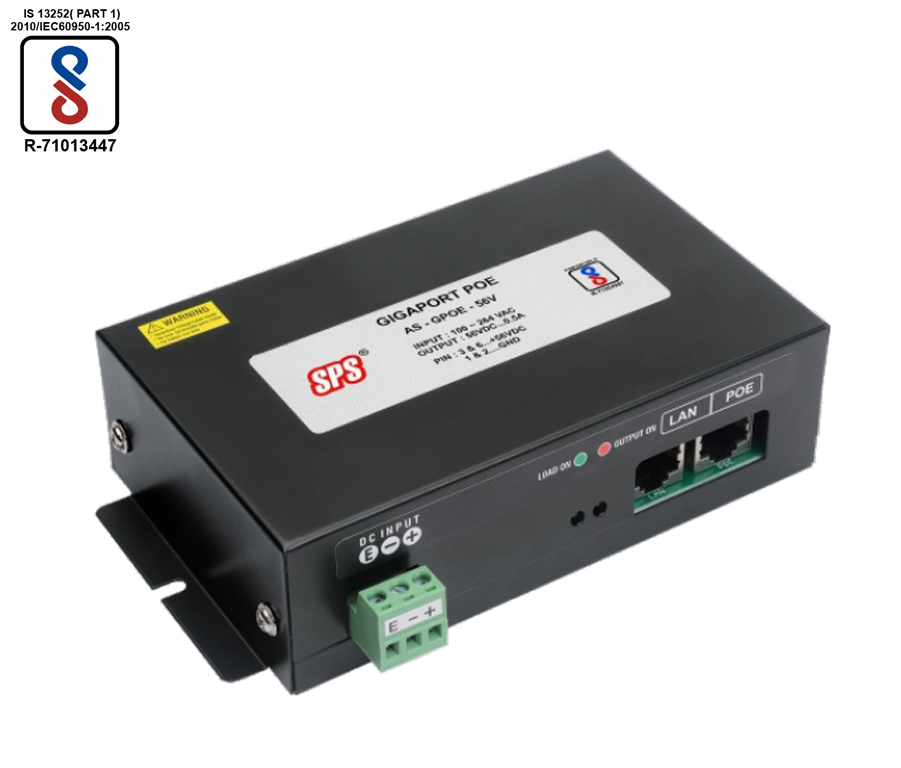

SPS-AC-GPOE-56
MODEL: SPS-AC-GPOE-56
- Wide Range AC Input 100~264VAC
- Input & Output Thru. Screw Type Connectors
- Short Circuit, Over Load/Voltage Protections
- Low Working Temp. & High Efficiency Design
- 10/100/1000 MbPS Data Rates.
- Isolation Between I/P & O/P
- BIS Certified Design
- IC Based LAN Transformer - For Low Losses & Long Length Cable Compatibility
| AC Input : | 100 ~ 264Vac, 50/60Hz. |
| Inrush Current : | 30A. Maximum. |
| Input Surge : | 2KV |
| Input Fusing : | 3A, 250Vac. |
| DC Output : | 56V@500mA 30WMax. |
| Ripple / Noise : | < 1% Pk-Pk (BW 20Mz.) |
| Over Voltage : | @125% (+/- 5%) of OPV |
| Isolation | I/P – O/P : 2KV |
| Input to Earth : | 1.5KV |
| Working Temp. : | -10 ~ 60 Deg. C. |
| Efficiency : | 85% Typ.@ Rated Load. |
| Safety Standards : | As per Ul1950, IEC950,BIS |
| LED Indications : | Green ....Load ON. RED........O/P ON. |
| Compliance : | EMI FCC Part 15 Class B En55022 Class B, IEC61000 |
| I/O Pinout : | PIN 3&6...+56VDC PIN 1&2...GND. |
| IEEE 802.3AF / At Comp.: | YES (10/100/1000) |
| I/O Connectors. : | RJ45Conn. Metal Shielded |
| Housing : | MS Metal Casing |
| Max. Cable Run : | 120Mts ( Ethernet Limit) |

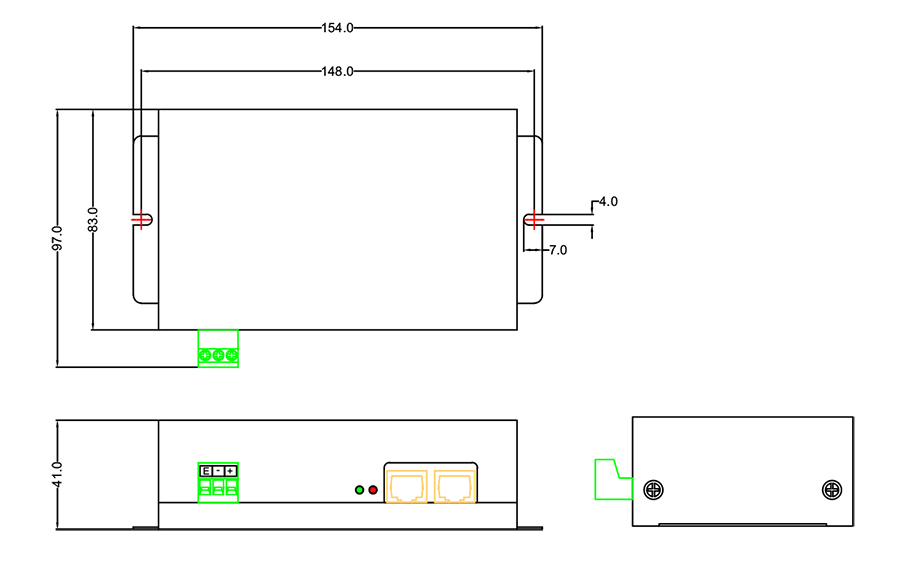

| Dimension (LxWxH) : | 135 X 83 X 40mm. |
Note : All Specs Subject to change without notice.
