SPS-8CH-12V-UTP

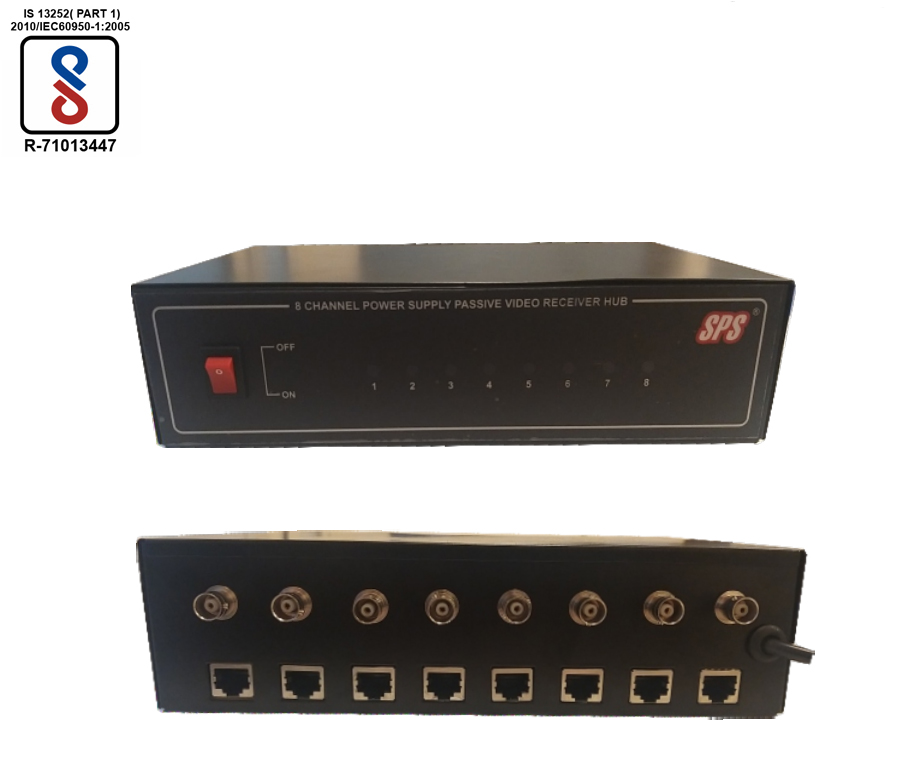

MODEL: SPS-8CH-12V-UTP
- 8 Channel Camera Video Balun Receiver with Individual SMPS, allows for Video and Power Transmission to analog cameras using CAT5e or CAT6 cable with our video power baluns.
- This 8 Channel passive video power balun hub allows you to consolidate your power supply into one source as opposed to 8 individual power adapters, or using a separate video balun hub and CCTV power distribution box.
- Wide Range AC Input 100~264VAC
- Table Top Mounting Design
- LED Indications for each Camera
- Video O/P Thru. BNC - Connection for DVR
- Power 12VDC Thru. RJ45 Socket
- Short Circuit & Thermal Protection for SMPS
- AC Mains ON-OFF Switch Provided
- 12Vdc - 1Amp. O/P for each CCTV Camera
- Reliable and cost efficient Design
- 1 Year product warranty
| Transreceiver Type : | 8 CH SMPS & Passive Video Balun Receiver Hub. |
| Video/Power Inputs : | 8 X RJ45 Socket. |
| Video Output : | 8 X BNC for Connection to DVR. |
| Video : | Frequence Response Range : DC-5MHz. Common-Mode / Differential-Mode Rejection : 5KHz-5MHz 60dB Type. |
| Compatible Wire Type : | 24-16 AWG UTP CAT5 or Higher ; DC Loop Resistance <=180/100m; Differential Capacitance : 62pF/m (max). |
| Impedance : | UTP or Connection or Rj45 : 1000; BNC Coax : 750 |
| Power Input : | 100~264VAC, 3 Pin Mains Cord. |
| Power Output : | 8 X 12VDC - 1Amp. (Peak 2Amp.) Individual SMPS. |
| Power Transmission : | 12VDC up to 750ft vis UTP CAT5e or CAT6. |
| Dimensions : | 245 X152 X 65 (mm) - 19 inch - Table Top Design. |
- CCTV Camera Installations using CAT5e / CAT6 Cable

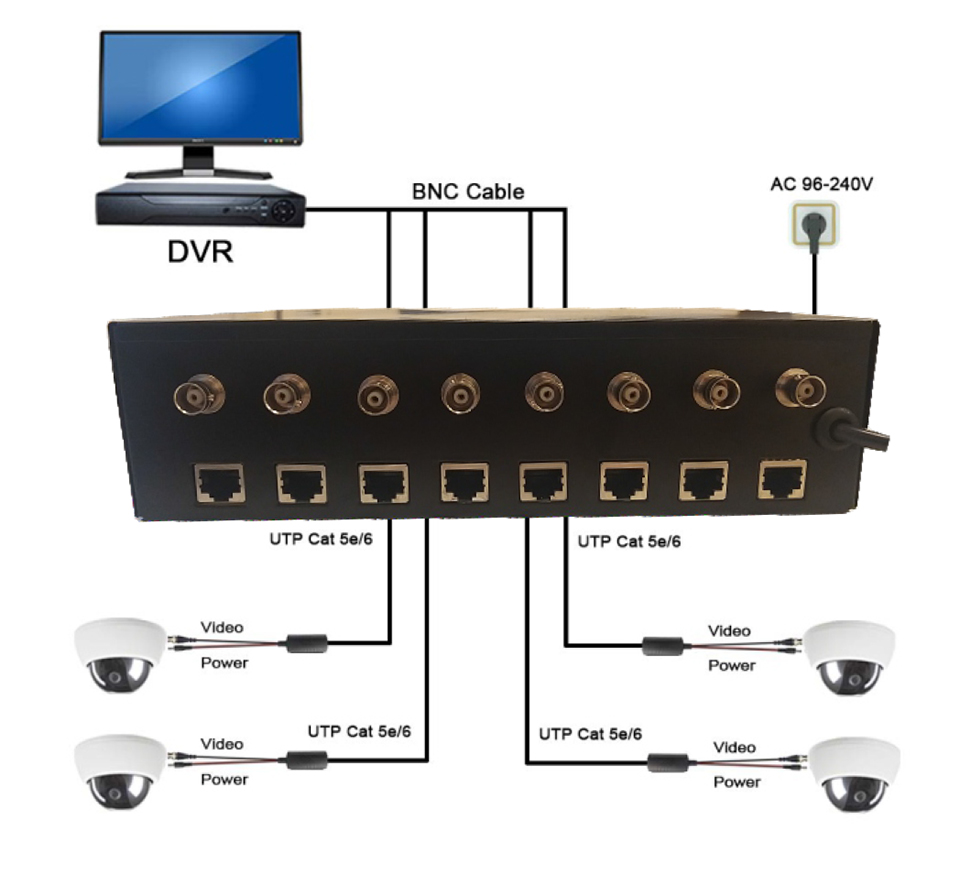

SYSTEMS SET-UP DETAILS
- Direct connection to video balun and DVR.
- Connect DVR directly to the BNC video outputs on the receiver, and network or UTP twisted pair cable to camera location ( max 1300ft wire run) and terminate the passive video power baluns.
- Note : Max power distance is 750ft for thios type of video/power balun hub.
