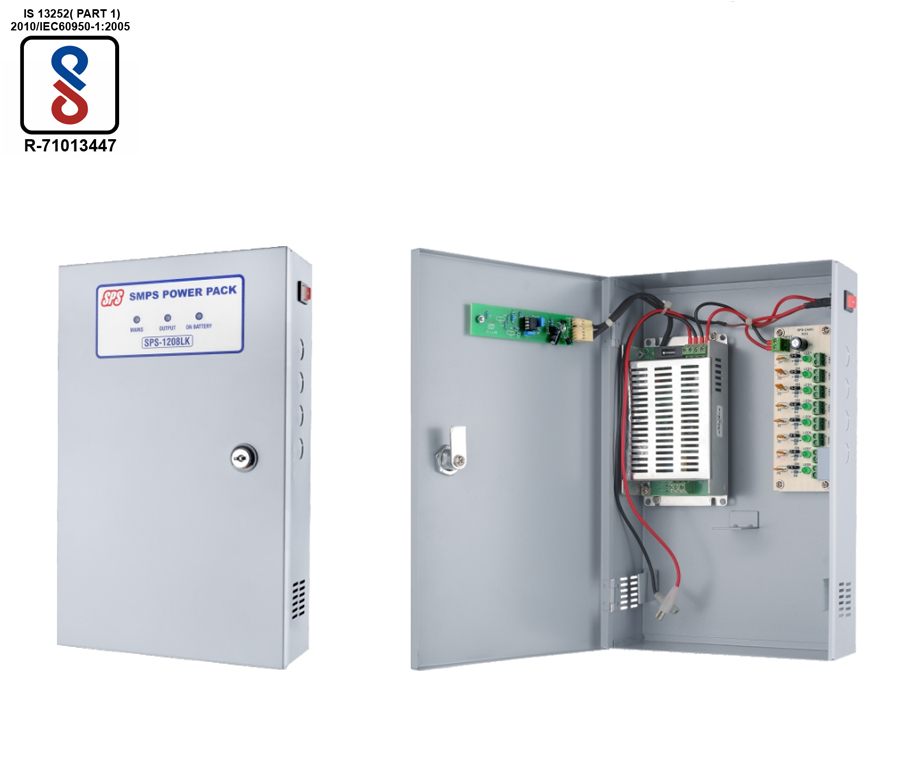

MULTI CHANNEL CC TV SMPS | ||
---|---|---|
Model | O/P Voltage / Channel | Dimension |
SPS-BBU1208 | 12Vdc / 8 CH | 300 X 187 X 72 mm |
AC Input : | 100 ~ 264Vac, 50/60Hz. |
Inrush Current : | 30A. Maximum. |
Input Surge : | 2KV |
Input Fusing : | 2.5A, 250Vac. |
DC Output : | 12VDC - 8 CH |
Ripple / Noise : | < 1% Pk-Pk (BW 20Mz.) |
Over Voltage : | @125% (+/- 5%) of OPV |
Withstand Voltage : | I/P – O/P : 2KV |
Working Temp. : | -10 ~ 60 Deg. C. |
Efficiency : | 85% Typ.@ Rated Load. |

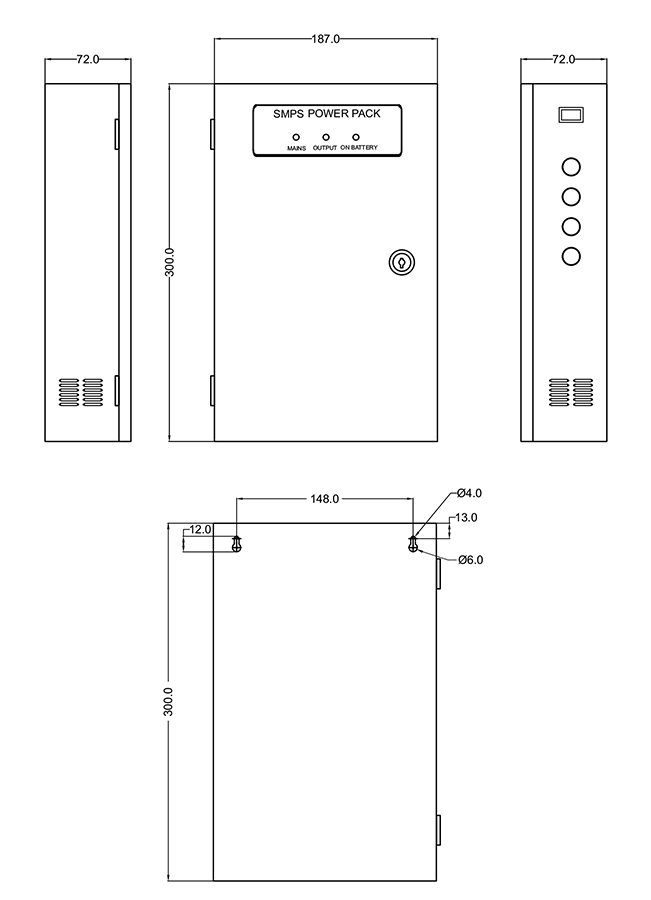

Dimension (LxWxH) : | 300 X 187 X72mm |
Safety Standards : | BIS Certified |
Note : All Specs Subject to change without notice.
