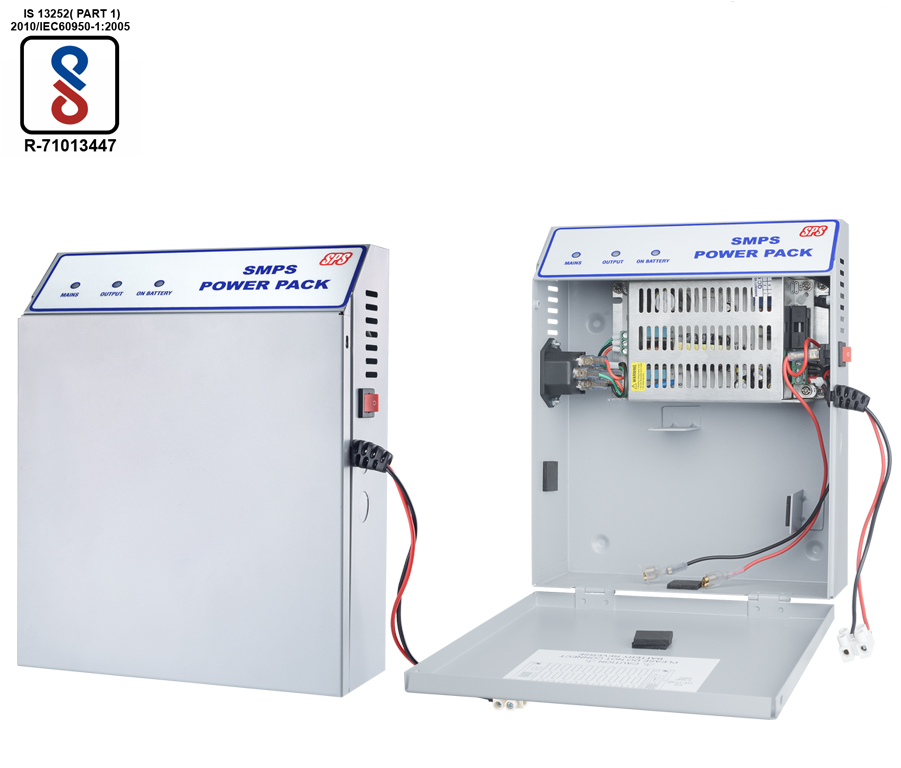

SPS-72R BBU 12V-3A
MODEL: SPS-72R BBU 12V-3A
| MULTI CHANNEL CC TV SMPS | ||
|---|---|---|
| Model | O/P Voltage / Current | Dimension |

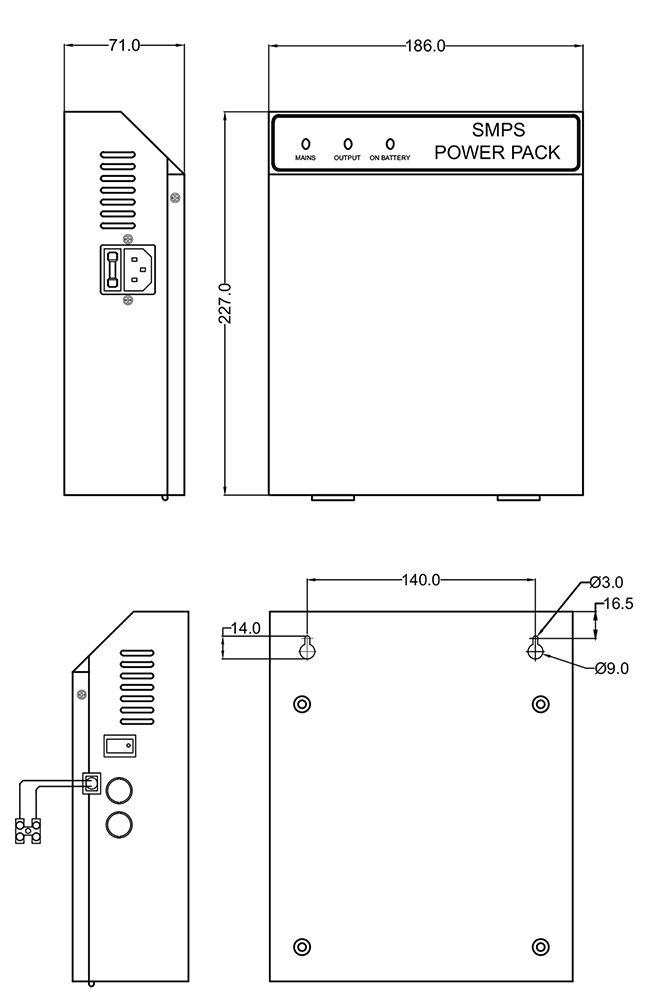

| SPS-BBU-1203 | 13.8Vdc / 3Amp. | 227 X 186 X 71 mm |
- Wide Range AC Input 100~264VAC
- 12Vdc Common SMPS for CCTV Camera
- 12Vdc / 7.2Ah SMF Batt. for Back-UP
- Auto Change-Over During AC Mains Failure
- Auto Batt. Recharging when Mains Restore
- Auto O/P Cut-Off when Batt. LOW
- Short Circuit & Thermal Protection
- AC Mains ON-OFF Switch Provided
- 12Vdc - 3Amp. O/P for DVR /CCTV Camera
- LED Indications - AC Mains/ON Battery / Low Battery
- Noise Free O/P for each Camera
- PTC Fuse , Jumper Switch for each Channel
- Short Circuit & Reverse Batt. Protections
- Reliable & Cost Efficient Product
- Wall Mount MS Housing with Lock & Key
- O/P LED Indication for each Channel
- BIS Certified Design
- 1 Year Product Warrant
| AC Input : | 100 ~ 264Vac, 50/60Hz. |
| Inrush Current : | 30A. Maximum. |
| Input Surge : | 2KV |
| Input Fusing : | 2.5A, 250Vac. |
| DC Output : | 13.8VDC- 3 |
| Ripple / Noise : | < 1% Pk-Pk (BW 20Mz.) |
| Over Voltage : | @125% (+/- 5%) of OPV |
| Withstand Voltage : | I/P – O/P : 2KV |
| Working Temp. : | -10 ~ 60 Deg. C. |
| Efficiency : | 85% Typ.@ Rated Load. |
| Dimension (LxWxH) : | As per Chart |
| Safety Standards : | BIS Certified |
Note : All Specs Subject to change without notice.
- Telecom Industry
- Set-Top Box
- RO Filters
- CCTV
- Fire Safety
