SPS-1208 ( 8nos SMPS 12VDC )
MODEL: SPS-1208 ( 8nos SMPS 12VDC )
| MULTI CHANNEL CC TV SMPS | ||
|---|---|---|
| Model | O/P Voltage / Channel | Dimension |
| SPS-12X8LK | 12Vdc / 1A x 8 nos. | 335 X 141 X 36 mm |
- SMPS 12VDC/1A Each X 8nos. For 8 Camera
- Wide Range AC Input 100~264VAC
- Noise Free Output for Camera
- I/P Thru. 3Pin Mains Cord 1.5mt. Long
- O/P Thru Screw Type Connectors on PCB
- Compact,Rigid & Sturdy Design
- Short Circuit & Thermal Protection
- Inbuilt AC ON-OFF Switch Provided
- Low Working Temperature
- Reliable & Cost Efficient Product

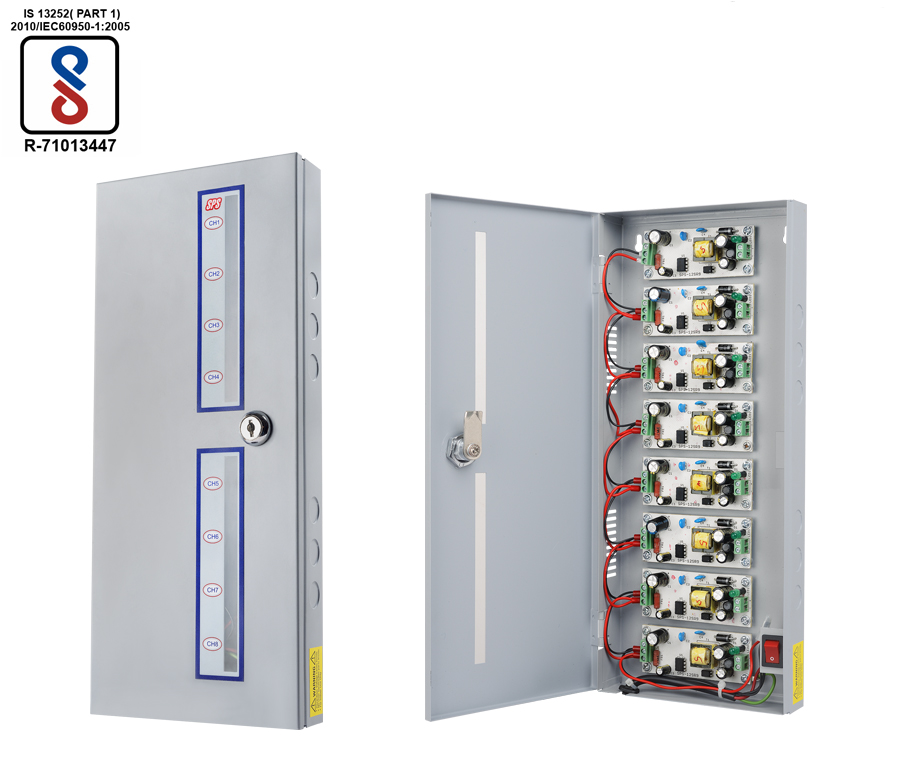

- Wall Mount MS Housing with Lock & Key
- LED Indication for each Channel
- BIS Certified Design
- 1 Year Product Warrant
| AC Input : | 100 ~ 264Vac, 50/60Hz. |
| Inrush Current : | 15A. Maximum. |
| Input Surge : | 2KV |
| Input Fusing : | Fusible Resistor. |
| DC Output : | 12VDC /1A Each x 8nos. |
| Ripple / Noise : | < 1% Pk-Pk (BW 20Mz.) |
| Over Voltage : | @125% (+/- 5%) of OPV |
| Withstand Voltage : | I/P – O/P : 2KV |
| Working Temp. : | -10 ~ 60 Deg. C. |
| Efficiency : | 85% Typ.@ Rated Load. |

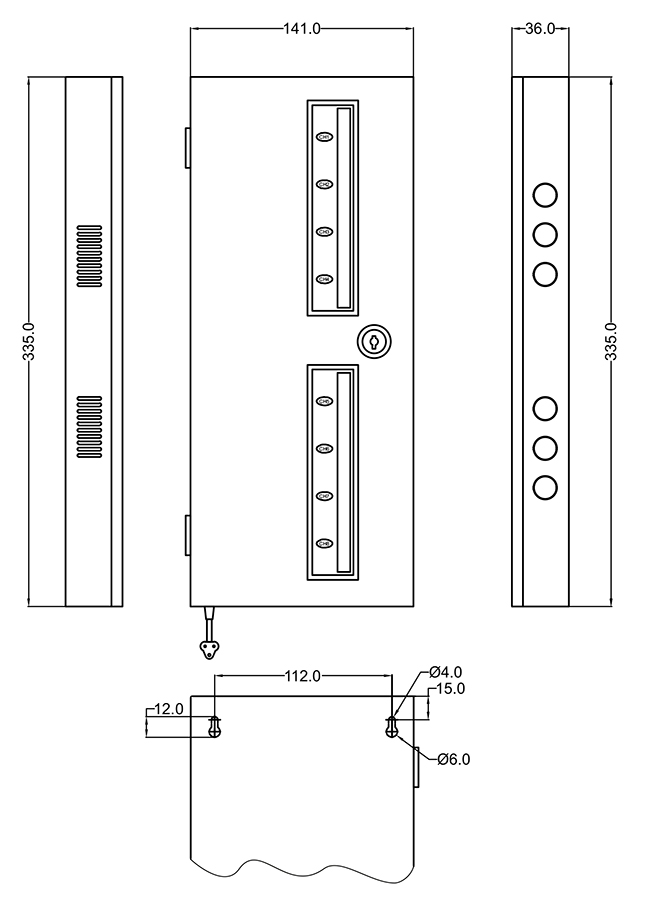

| Dimension (LxWxH) : | 335 X 141 X 36mm |
| Safety Standards : | BIS Certified |
Note : All Specs Subject to change without notice.
