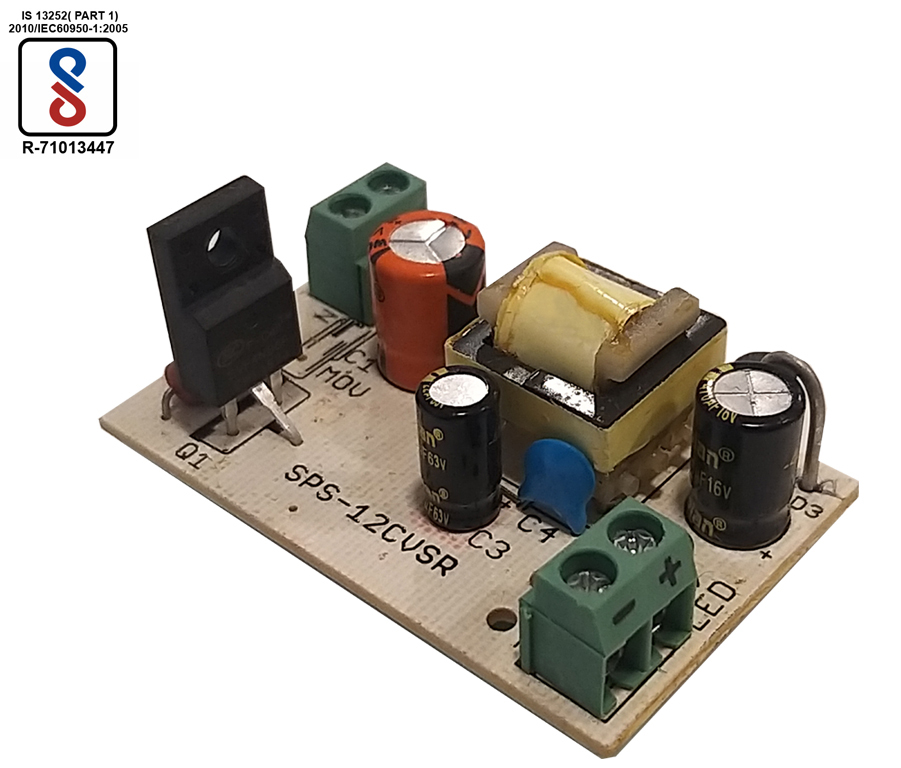

SPS-12CVSR
MODEL: SPS-12CVSR (15~18W)
| 15~18W SMPS O/P CHART. | ||
|---|---|---|
| Model | O/P Voltage | O/P Current |
| A | 5Vdc | 3Amp. |
| B | 12Vdc | 1.5Amp. |
| C | 24Vdc | 0.75Amp. |
- Wide Range AC Input 100~264VAC
- PCB Mounted I/P & O/P Connectors
- Short Circuit, Over Load/Voltage Protections
- High Efficiency & Low Working Temperature
- Reliable & Cost Efficient
- BIS Certified Design
- 1 Year Product Warrant
| AC Input : | 100 ~ 264Vac, 50/60Hz. |
| Inrush Current : | 15A. Maximum. |
| Input Surge : | 2KV |
| Input Fusing : | Fusible Resistor. |
| DC Output : | As per Chart. |
| Ripple / Noise : | < 1% Pk-Pk (BW 20Mz.) |
| Over Voltage : | @125% (+/- 5%) of OPV |
| Withstand Voltage : | I/P – O/P : 2KV |
| Working Temp. : | -10 ~ 60 Deg. C. |
| Efficiency : | 85% Typ.@ Rated Load. |
| Dimension (LxWxH) : | 55 X 34 X 20mm |
| Safety Standards : | As per BIS Standards |
Note : All Specs Subject to change without notice.
- Telecom Industry
- Set-Top Box
- RO Filters
- CCTV
- Fire Safety
