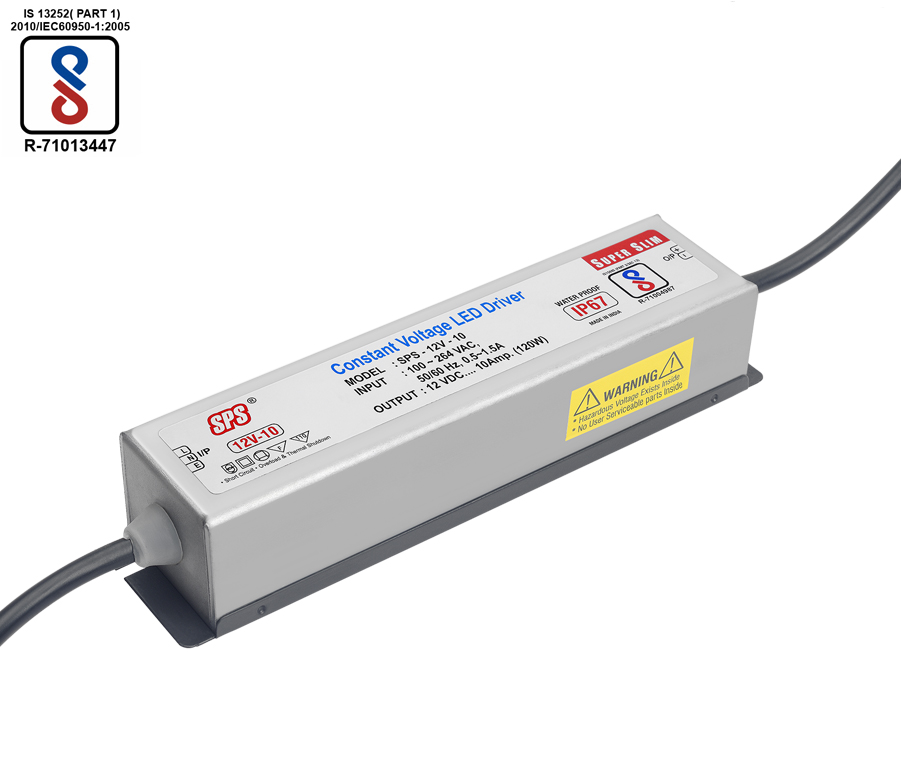

MODEL: SPS-12V-10 (IP67)

120W CV SMPS O/P CHART.
Model O/P Voltage O/P Current
A 12Vdc 10Amp.
B 24Vdc 5Amp.
  • Features
  • Specifications
  • Applications

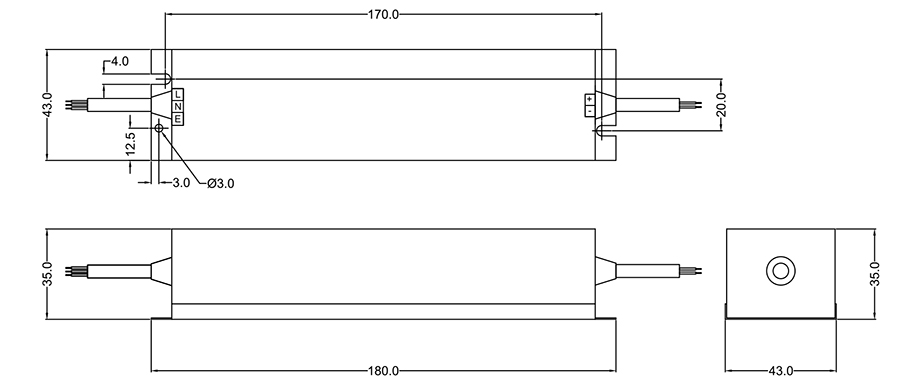

  • Diagram
  • Wide Range AC Input 100~264VAC
  • Input & Output Thru. Flying Wires
  • Short Circuit, Over Load/Voltage Protections
  • High Efficiency & Flicker Free Design
  • Compact Slim & Fully Potted Design
  • Reliable & Cost Efficient
  • BIS Certified Design
  • 2 Year Product Warrant
AC Input : 100 ~ 264Vac, 50/60Hz.
Inrush Current : 30A. Maximum.
Input Surge : 2KV
Input Fusing : 3A, 250Vac.
DC Output : 12V or 24V - 120W Max.
Ripple / Noise : < 1% Pk-Pk (BW 20Mz.)
Over Voltage : @125% (+/- 5%) of OPV
Withstand Voltage : I/P – O/P : 2KV
Working Temp. : -10 ~ 60 Deg. C.
Efficiency : 85% Typ.@ Rated Load.
Dimension (LxWxH) : 163mm X 42mm X 35mm
Safety Standards : BIS Certified

Note : All Specs Subject to change without notice.

  • Outdoor Installations of LED Modules & LED Strip Light
