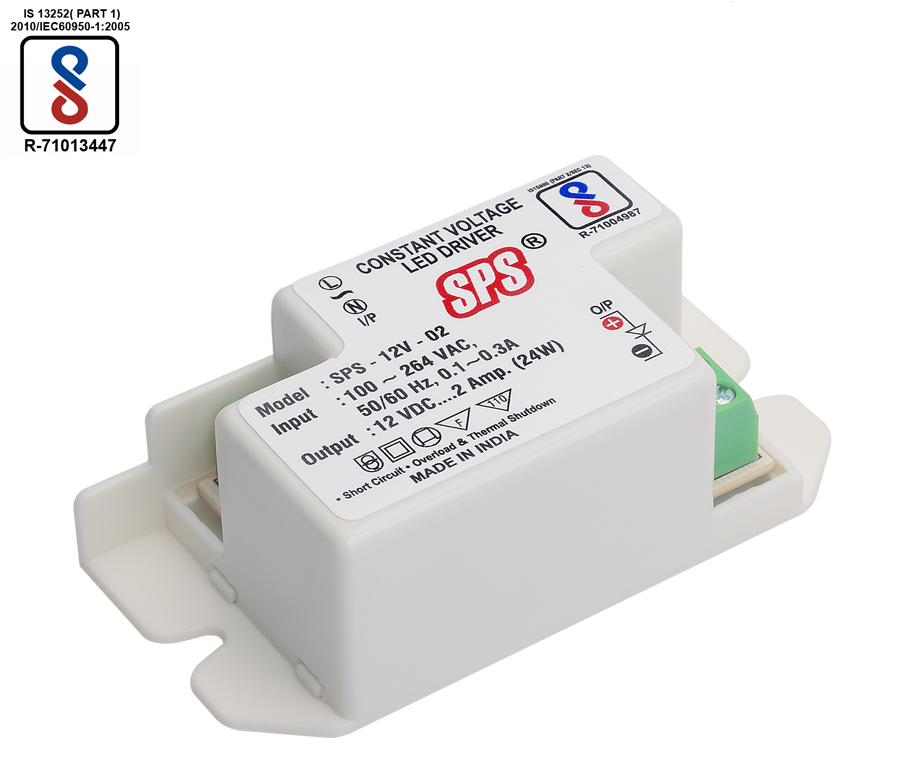

SPS - 12V - 02 (ABS BODY)
MODEL: SPS - 12V - 02 (ABS BODY)
| 24W CV SMPS O/P CHART. | ||
|---|---|---|
| Model | O/P Voltage | O/P Current |
| A | 12Vdc | 2Amp. |
| B | 24Vdc | 1Amp. |
- Wide Range AC Input 100~264VAC
- Input & Output Thru. Screw Type Connectors
- Short Circuit, Over Load/Voltage Protections
- High Efficiency & Flicker Free Design
- Super Slim Compact Design & Light Weight
- Reliable & Cost Efficient
- BIS Certified Design
- 2 Year Product Warrant
| AC Input : | 100 ~ 264Vac, 50/60Hz. |
| Inrush Current : | 10A. Maximum. |
| Input Surge : | 2KV |
| Input Fusing : | Fusible Resistor. |
| DC Output : | 12V or 24V - 24W Max. |
| Ripple / Noise : | < 1% Pk-Pk (BW 20Mz.) |
| Over Voltage : | @125% (+/- 5%) of OPV |
| Withstand Voltage : | I/P – O/P : 2KV |
| Working Temp. : | -10 ~ 60 Deg. C. |
| Efficiency : | 85% Typ.@ Rated Load. |

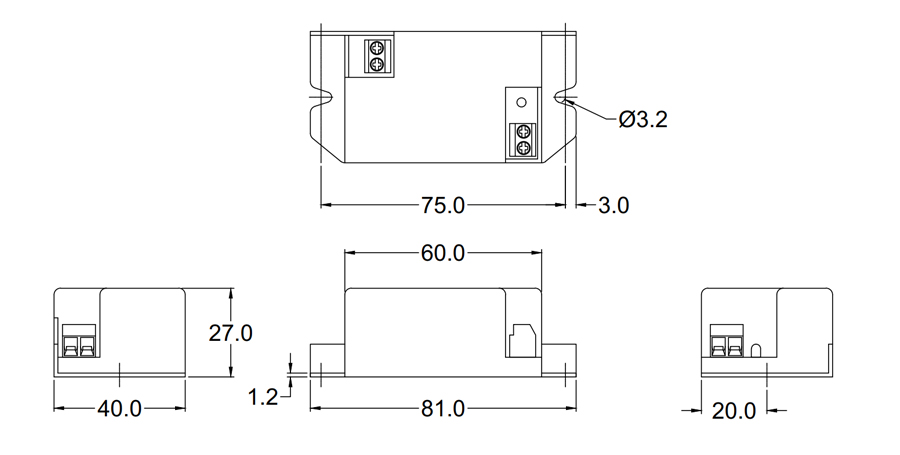

| Dimension (LxWxH) : | 81 X 40 X 27mm |
| Safety Standards : | BIS Certified |
Note : All Specs Subject to change without notice.
